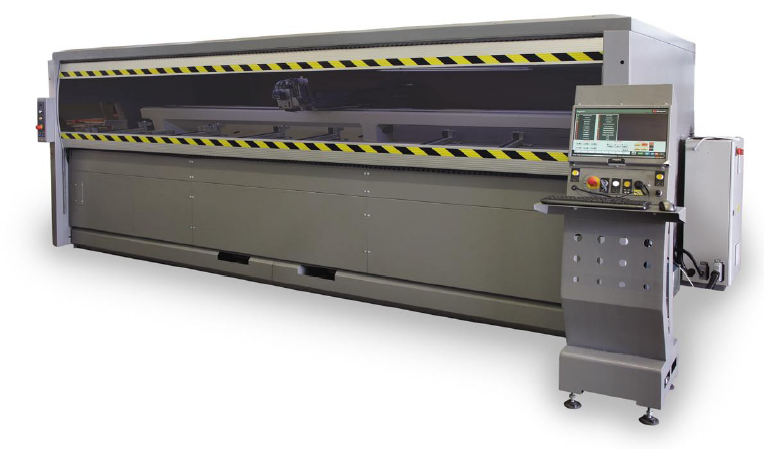

C4 VERTICAL MACHINING CENTER

4 METERS WITH 11 TOOL CHANGER

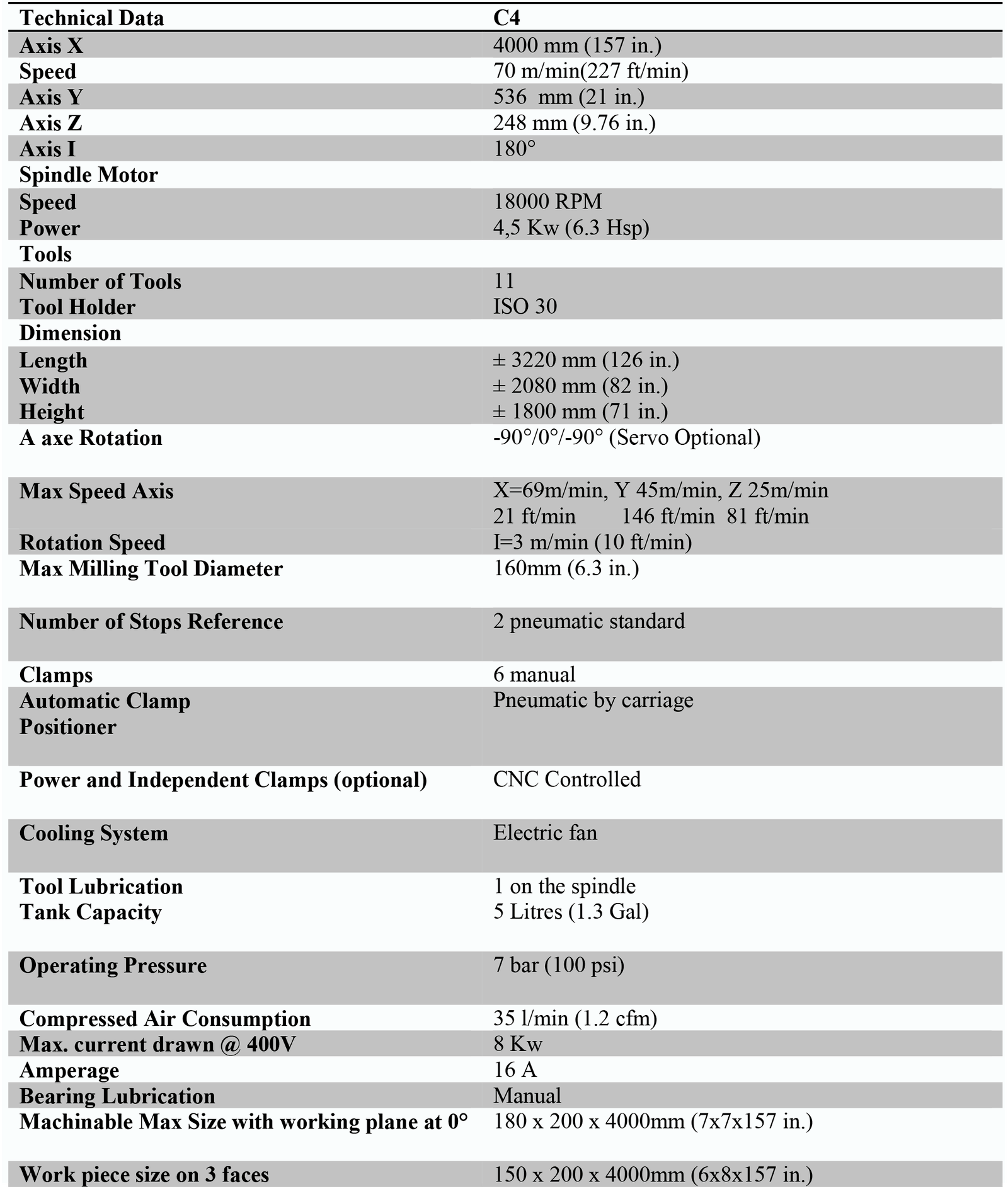

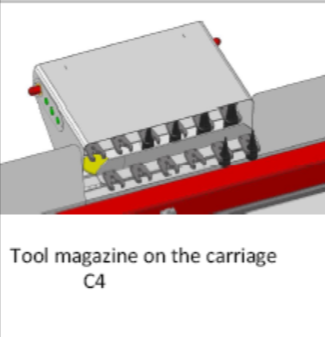

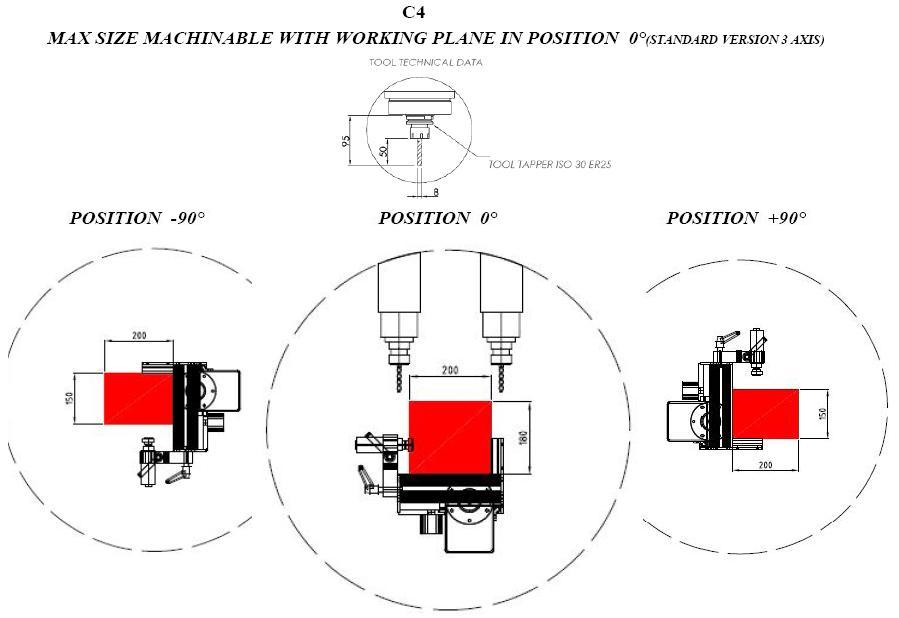

The C4 vertical machining center is a computer numerically controlled vertical router for Aluminum, PVC, Fiberglass and steel capable of working on 3 sides of the profile. Pneumatic tilting working table: +90°/0°/-90°, intermediate angles are obtained by mechanical stops, optional CNC controlled electronic rotation is available upon request. Spindle speed adjustment from 2800 to 18000 rpm is controlled by a frequency inverter. Computer Numerically Controlled interpolation of X and Y. Axis’ X, Y and Z movements utilize brushless motors. The unit comes complete with 4 pneumatic double acting clamps for material fixturing and an automatic tool changer. Software compensated tool diameter correction. Left and right profile zero stops, pneumatically actuated. Milling dimensions: X= 4000 mm Y= 200 mm Z= 180mm. Perimeter protection for safety, optional. The C4 is equipped with a fixed tool magazine that can hold up to 11 tools. A retractable enclosure protects tools from chips and dust produced during the machining process.

COMPONENTS SUPPLIED

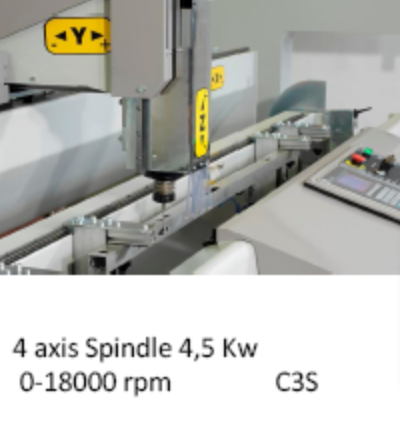

• N. 1 HSD model ES330 Electrospindle 4,5 Kw- 0/18.000 rpm

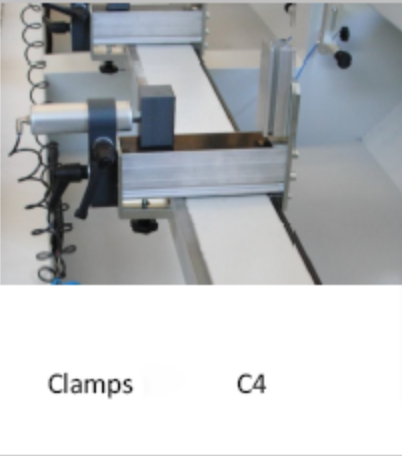

• N. 6 Manual Positioning Clamps
• N. 1 Oil Sprayer Lubrication on the Electrospindle
• Single Zone Working
• Fast & Easy Changing ISO 30 Tool System
• Manual Slides Greasing
• Cooling System by Electric Fan & Numerical Control

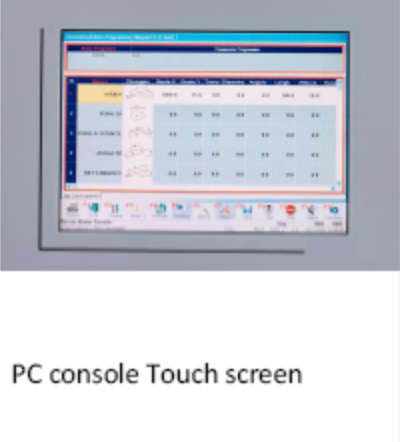

• Touch Screen & PC with Monitor
• Hard Disk 80 Gb capacity & USB Ports & Keyboard
• Serial and Parallel Interfaces for Online Connection, Barcode Scanner, Modem and Label Printer Operator Console on the Machine
• Air Gun and Spiral Plastic Pip
• Service Spanner for Cones
• Machine Documentation / Manuals
• 11 Tool Positions
• 2 Zero Setting Points Pneumatic Actuation
• Safety System with Opti-electronic Barriers
• CNC Controlled Automatic Tool Changer
• Program Language ISO Standard from DXF to Macro
• Interface Microsoft Windows 10 Professional (WinCNC and ECAD)
• Communication Service for Remote Control by Ehternet or WIFI Connection

OPTIONS

*To be Quoted on Request*

• Clamp kit
• Automatic tool measurement
• Front protection
• Tool Kit: N.5 Tool Holders ISO 30 with collet ER 16- ER25 & N.5 HM Milling toold D.5/6/8/10
• End Milling Kit for System ISO 30 complete with: Tool holder ISO 30 ER 32 with jaw D. 20 mm & Milling tool holder circular
• Counter-Balanced Threading Tap ISO 30 M3-M10
• Automatic positioning of the clamps on CNC
