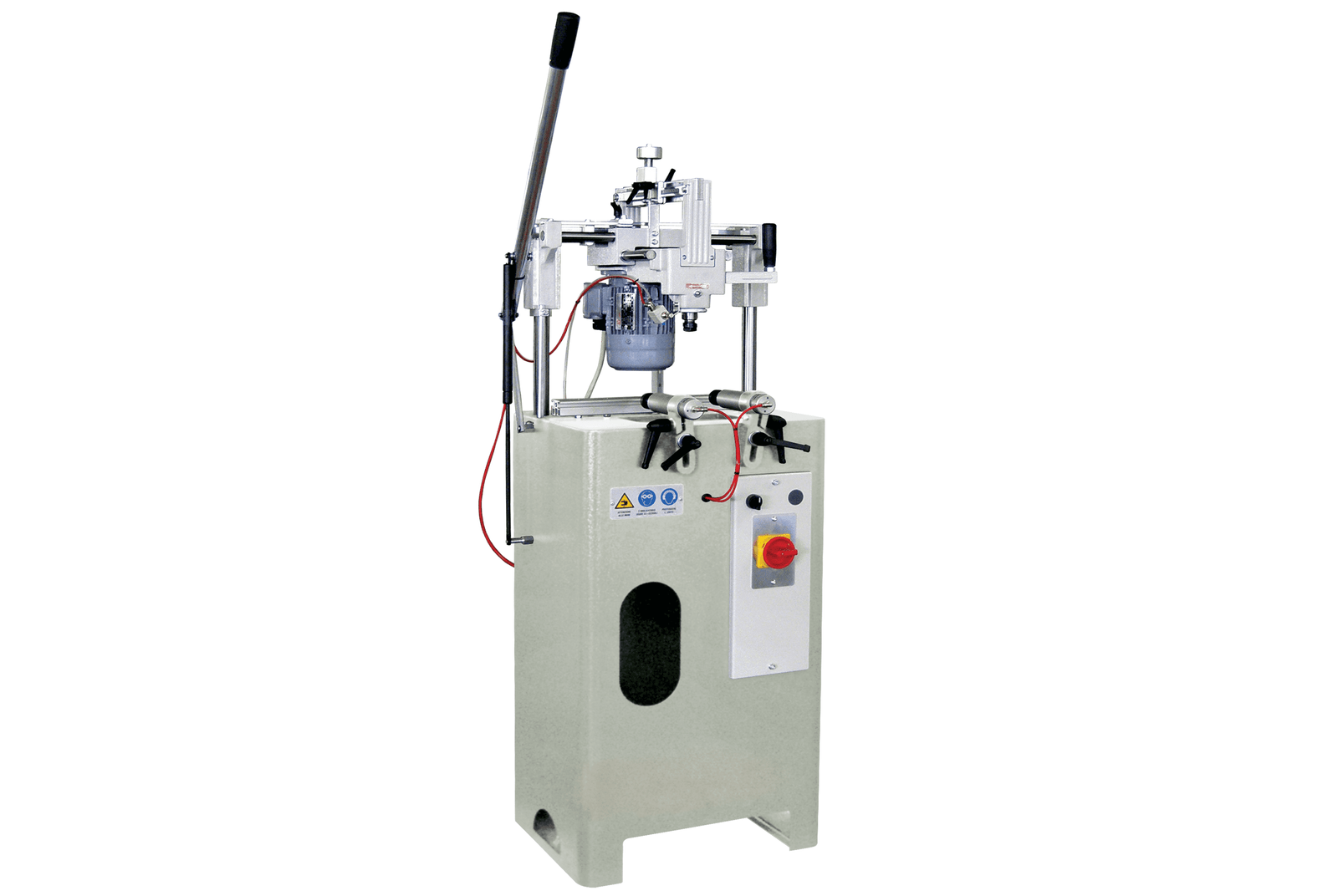

CR105 COPY ROUTER

The CR105 model single head-copying machine is the ideal tool for machining through cuts in aluminum or PVC profiles. With its high level technical and engineering features, it is capable of performing all kinds of profiling (sliding bar inserts, locks, cylinders) with both speed and precision.

TECHNICAL DATA

Manual single head copy router with pneumatic clamps and mist system, equipped with 1 manual tracer point. Working capabilities 200 x 120 x 110 mm. Spindle Rotation 10000 rpm. 220 V, Three phase motor 0,5HP.

COMPONENTS SUPPLIED

• Steel stand
• Lubrication system
• No. 1 Universal copying template (quick change)
• No. 2 Pneumatic horizontal clamping cylinders
• No. 2 Three-diameter tracer points 5/8/10 mm
• No. 1 Spring collet 8 mm
• Profile’s stop

OPTIONS

• Collet
• Blank template for copying
• Template for copying according to drawings
• Single phase motor
• Emulsified cutting oil 20 Litre
