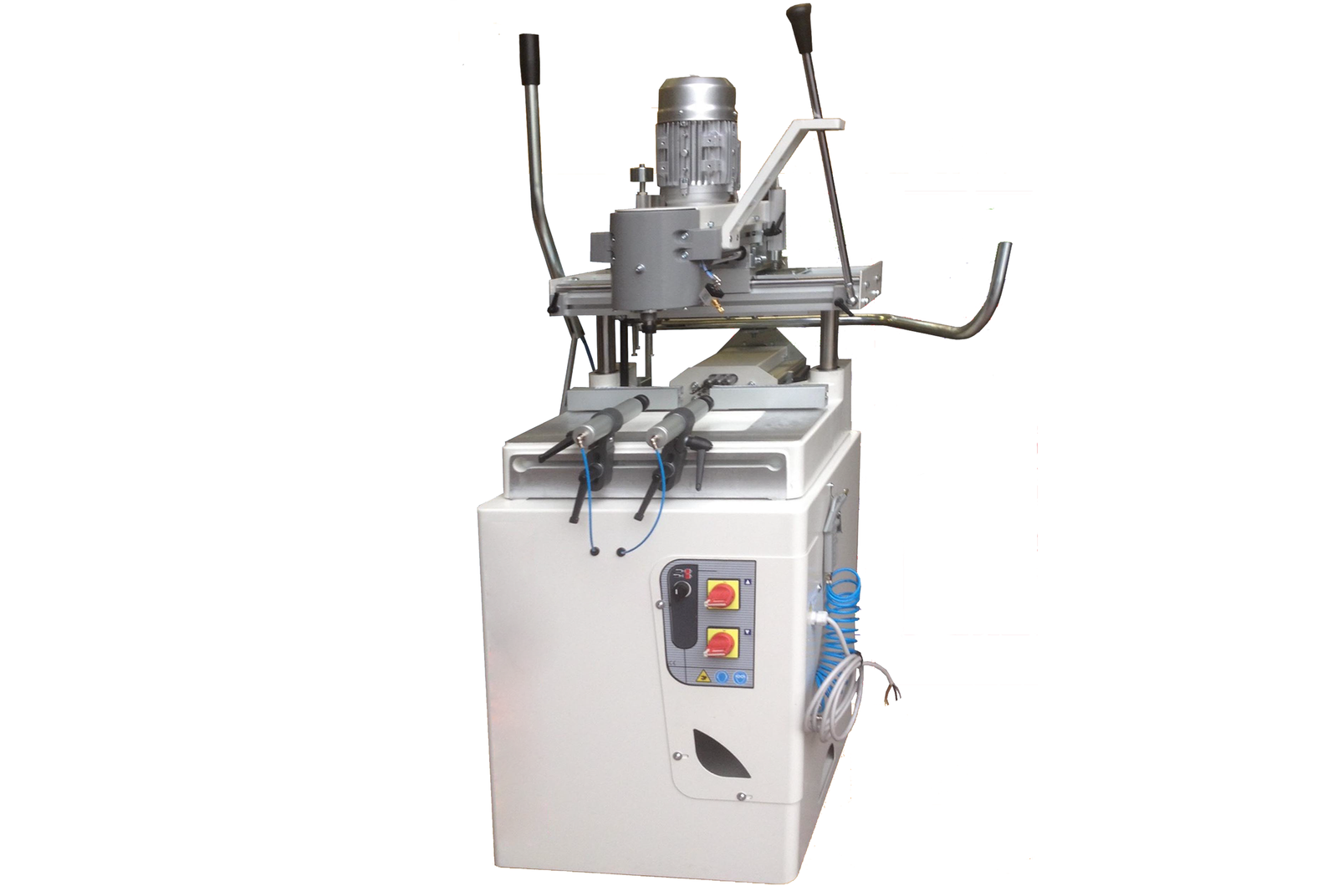

CR106 / CR106P COPY ROUTER

The CR106 / CR106P single head copy router complete with a secondary horizontal head for drilling hardware requirements on European style tilt and turn windows and doors, is the ideal tool for machining on aluminum or PVC and wood/aluminum profiles. The unit has manually feeding (pneumatic drill feeding on CR106P) with working capacity of 13x6x5.12 in. (330x150x130mm).

TECHNICAL DATA

• Pneumatic clamps and mist system
• Three phase motor 1HP, 12,000 rpm router motor
• Three phase motor 1HP, 1,400 rpm drill motor

COMPONETS SUPPLIED

• Steel stand
• Lubrication system
• No. 1 Universal copying template (quick change)
• No. 2 Pneumatic horizontal clamping cylinders
• No. 2 Three-diameter tracer points 5/8/10 mm
• No. 1 Spring collet 8 mm
• Profile’s stop
