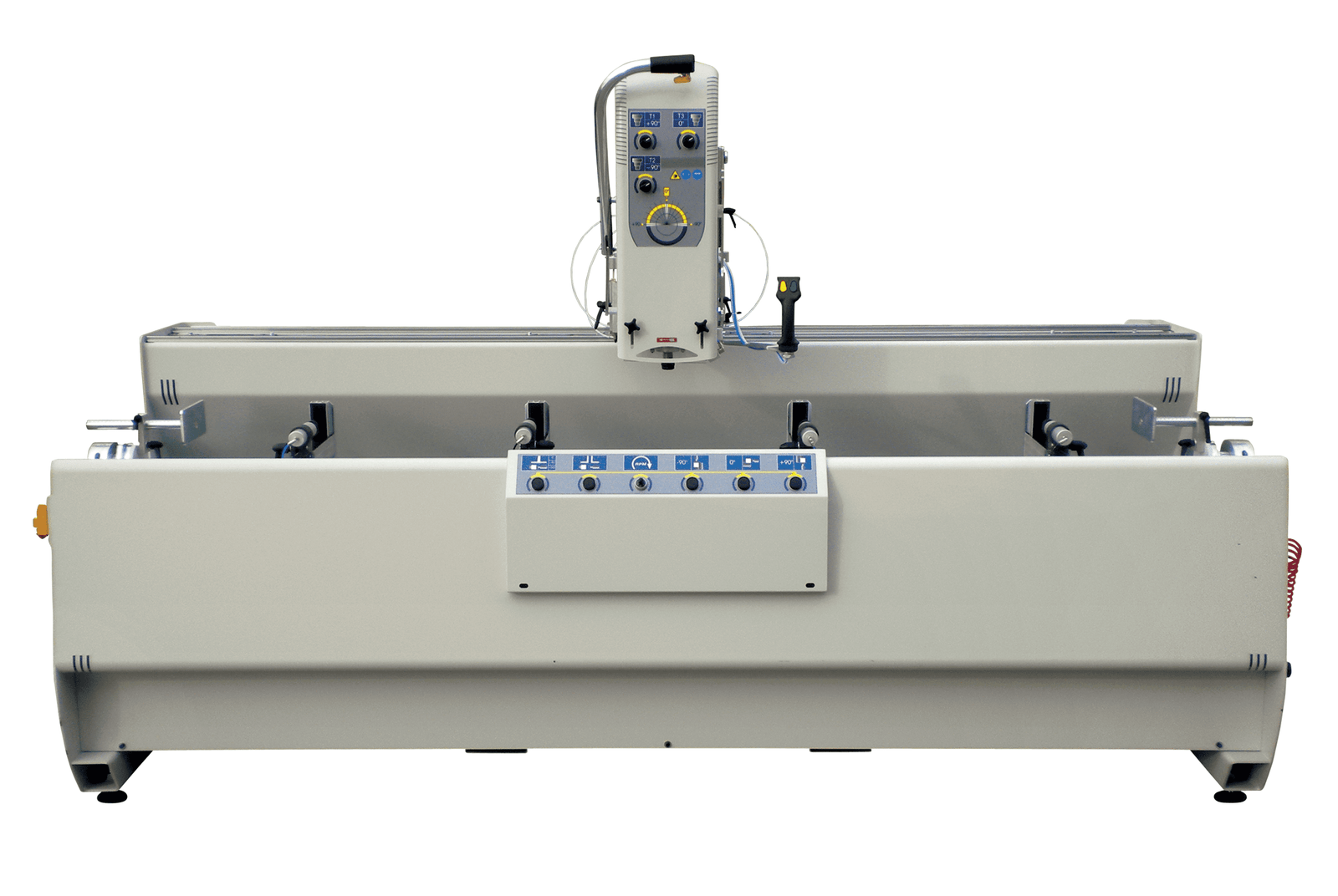

CR3000 COPY ROUTER

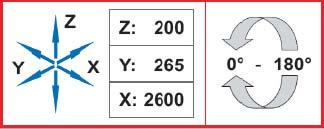

The CR3000 Copy Router is a manual copy router with pneumatic clamps, lubrication and pneumatic tracer points. The unit is equipped with pneumatic turning table at three positions -90°- 0° – 90° with goniometer (accurate scale) for adjusting intermediate angles. It is also equipped with a variable speed spindle adjustable by inverter and potentiometer (from 2800 to 12000rpm) with three phase motor 1,5HP (1.1kW) . Its’ working capacities are 3000 x 250 x 200 mm (118” x 9.8” x 7.8”) . It also boasts 2 pneumatically actuated tracer points. With 4 movable pneumatic clamps. X axis sliding on linear guides. Specially advised for working on aluminum, PVC, stainless and steel.

STANDARD EQUIPMENT

• Collet Ø8mm
• No. 4 pneumatic clamps
• No. 3 tracer points with 3 diameters: 5/8/10mm
• No. 3 copy templates
• Pneumatic spray mist lubrication
• Air filter
• Air gun

OPTIONS

• Blank template
• Collet Ø10mm
• Extra Ø450mm Carbide blade
• Emulsified cutting oil 20 Litre
