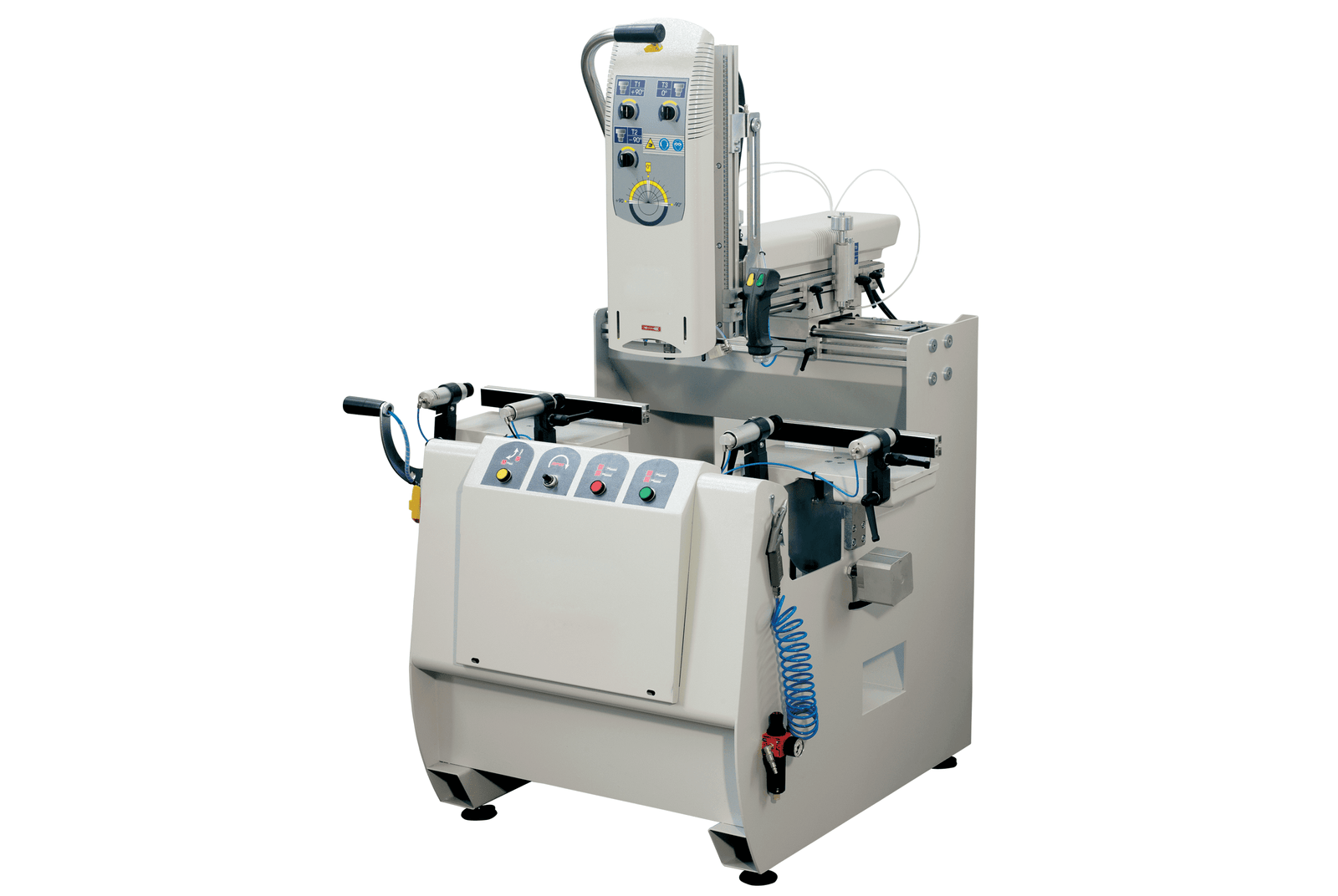

CR500 COPY ROUTER

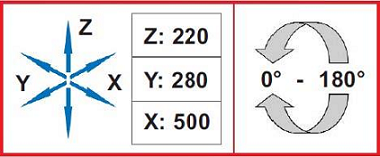

The CR500 Copy Router is a manual copy router with pneumatic clamps, lubrication and pneumatic tracer points. The unit is equipped with pneumatic turning table at three positions -90°- 0° – 90° with goniometer (accurate scale) for adjusting intermediate angles. It is also equipped with a variable speed spindle adjustable by inverter and potentiometer (from 2800 to 12000rpm) with three phase motor 1,5HP. Its’ working capacities are 500x280x220mm (19.6x11x8.6 in). It also boasts 2 pneumatically actuated tracer points.

STANDARD EQUIPMENT

• Collet Ø8mm
• No. 4 pneumatic clamps
• No. 3 tracer points with 3 diameters: 5/8/10mm
• No. 5 manual stops
• No. 1 copy templates
• Pneumatic spray mist lubrication
• Air filter
• Air gun
• Service Spanners
