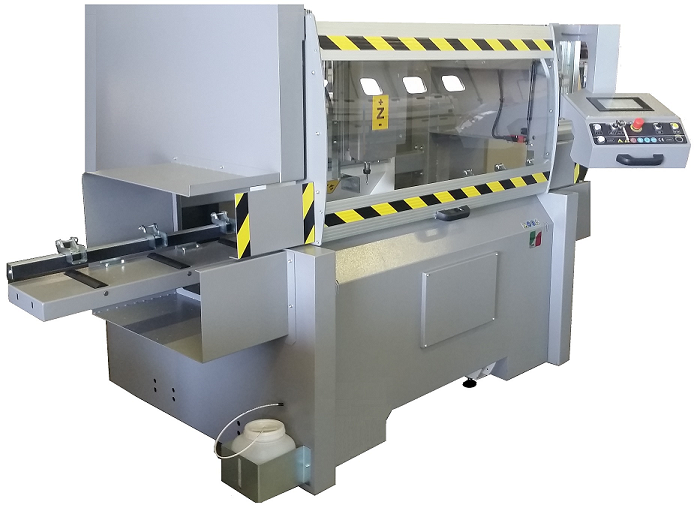

CR500 NC Copy Router for Aluminum and PVC Profiles

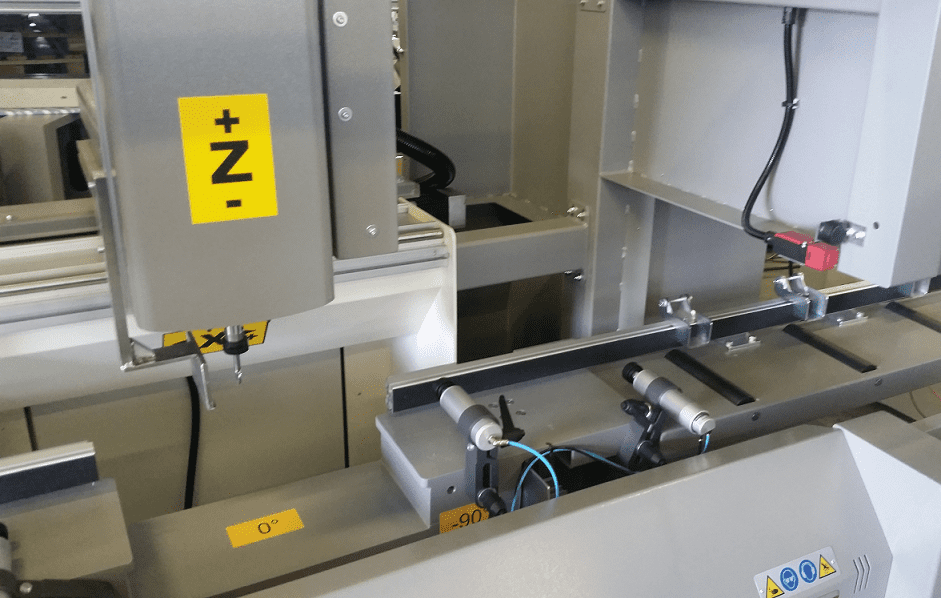

The CR500 is a numerically controlled compact vertical router for Aluminum, PVC and steel, capable of working on 3 sides of the profile. Pneumatic tilting working table: +90°/0°/-90°. Industrial CNC V8 with 8” Touchscreen display. Spindle speed adjustment from 1000 to 12000 rpm is controlled by a frequency inverter. Numerically Controlled interpolation of X and Y. Axis’ X, Y and Z movements utilize brushless motors on ballscrews. The unit comes complete with 4 pneumatic clamps for material fixturing. Software compensated tool diameter correction. Left and right profile zero stops. Frontal and perimeter protection for safety included.

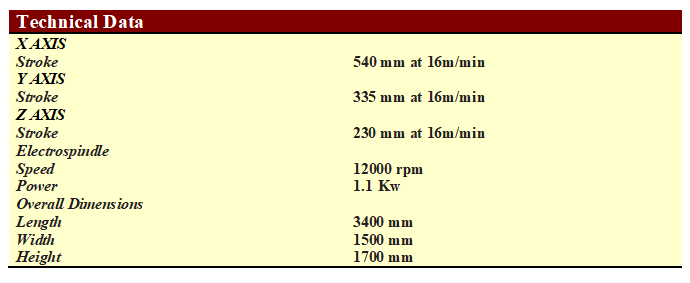

TECHNICAL DATA

• ER20 collet
• Manual tool changer with collet and nut
• Number of Stops Reference 4
• Clamps 4 manual
• Cooling System with Fan
• Tool Lubrication 1 on the Spindle
• Oil Tank Capacity 5 liters
• Operating Pressure 7 bar
• Air Consumption 35 Nl/min
• Power at 220 V 4 kW
• Amperage 20 A
• Machinable Max Size at 0° 170×160 mm

COMPONENTS SUPPLIED:

• 1.1 kW 1000-12000 RPM spindle
• N.4 Manual positioning clamps
• N.1 Oil sprayer lubrication on the spindle
• Easy changing ER20 nut and collet tool system
• Cooling system by fan
• Industrial TouchScreen CNC
• Dedicated easy-to-use on board software
• Ethernet interface for connection with LAN
• Operator console on the machine
• Air gun and feel spiral plastic pipe
• Service spanner for cones
• Machine documentation
• CE Certificate
• User and Maintenance manual
• CNC Manual
• Electrical and Pneumatic Drawings
• Safety system with opto-electronic barriers
• ISO Standard programming language and with graphical Macro
• Communication system for remote control with Ethernet
