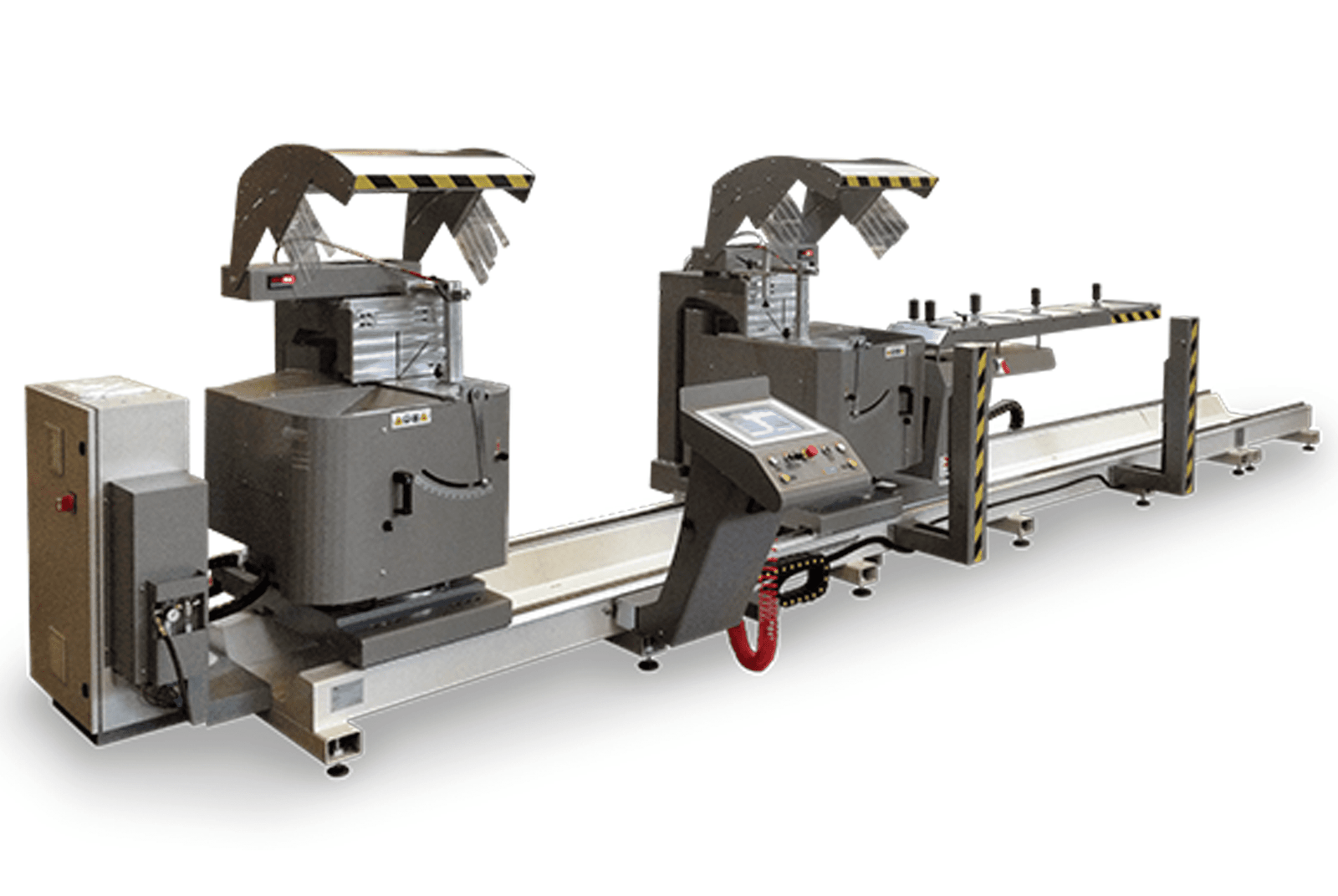

DUCCM550 DOUBLE COMPOUND MITRE SAW

The DUCCM550 double compound up cut miter saw with raising blades is designed for precision compound miter cuts. With a fixed unit on the left side and motorized movable unit on the right side and pivoting range up to 140° outwards and up to 20° inwards and digital display, the unit delivers unsurpassed versatility. It also has pneumatic tilting range inwards 90°/45°. Equipped with double acting vertical clamps, full protection of the saw blades, movable side support of 2.5m (8 ft), pneumatic spray mist lubrication and complete with a 2 TCT Saw Blades of Ø550 mm. and (2) 4 HP motors

TECHNICAL DATA

• Saw blades in TCT Ø550 mm
• Transducer kit for step by cutting
• Blade rising with hydra pneumatic cylinders
• Blade rotation positioning angles 90° to 20° internal and from 90° to 140° external
• Blade tilting positioning angles from 90° to 45° internal
• Maximum cutting length: 4000 mm (13‘) / 5000 mm (16‘4″) optional (Over length cuts are possible with included software)
• Minimum cutting length with heads at 90° is 420 mm (16.5″) (Under minimum cuts are possible with included software)
• Spray mist blade lubrication system
• Blade rotation, tilting and raising on precision bearings
• Mobile carriage movement by Brushless Motor

STANDARD EQUIPMENT

• Vertical and horizontal clamps 1 ea. per head
• Cutting area completely protected
• Pneumatically actuated guards
• Pneumatic mist spray
• Movable roller side support
• Air gun
• TS7002 Windows 10 CNC control
• Cut list capabilities
• TCT Saw blade Ø550 mm

OPTIONS

• Dust extractor
• Lubrication by micro drop with pure oil
• Label printer
• 5 meters cutting length
• 3 kW Motor
• Intermediate pneumatic support
• Extra clamp
