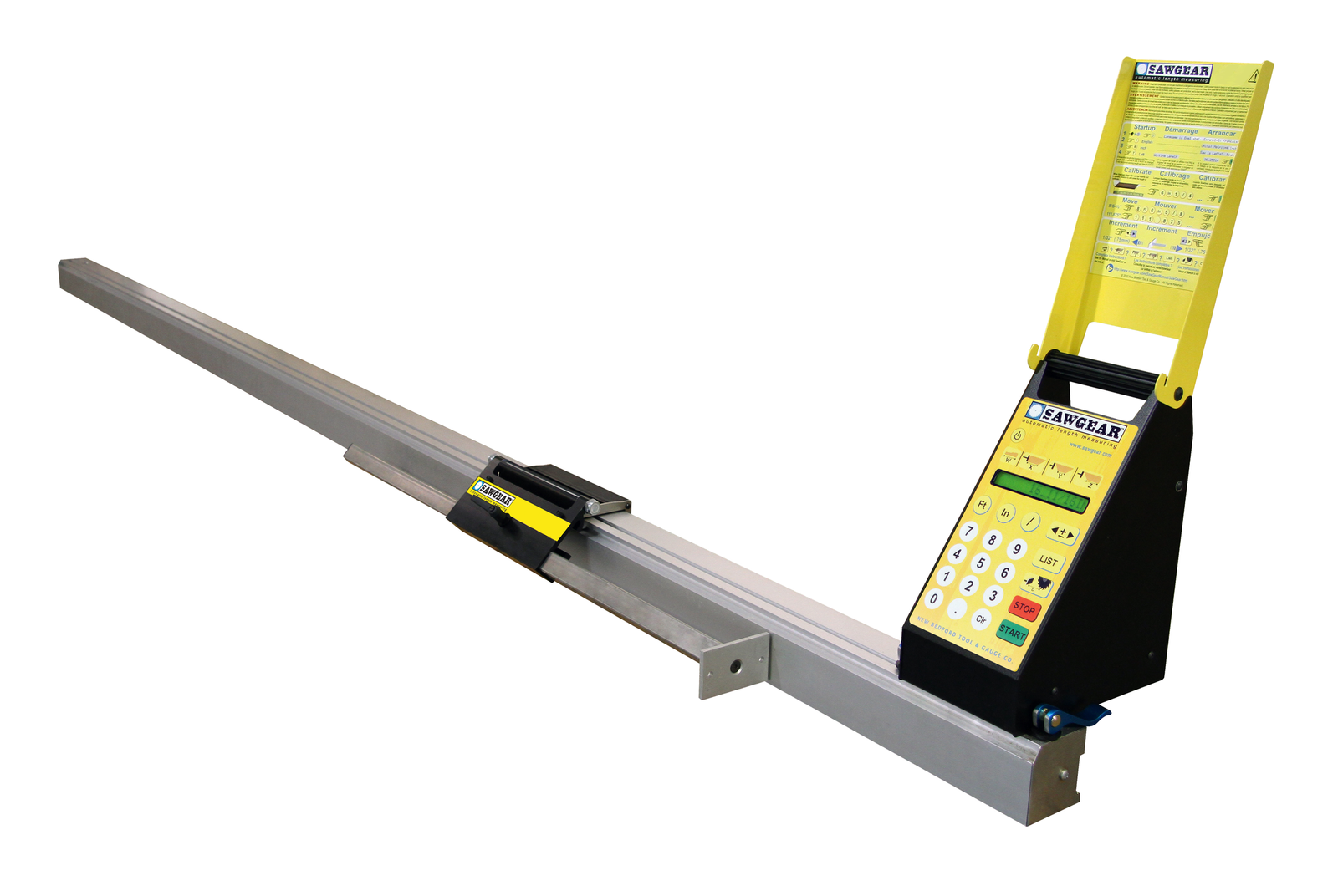

If you need a stop that is simple to use and rugged, SawGear is your answer.

With the Crown+MiterPro™ software, SawGear will easily calculate positions for angled or mitered parts. This makes manually nesting your angled parts a simple and math free process.

Double Miter Pro™ provides an easy way to integrate your SawGear with your double miter saw.

Technical Data

• Power Requirement: VAC @ 10 Amps, Isolated Circuit
• Repeatable Accuracy: .008 in (.20 mm)
• Motor Type: DC servo w/ optical encoder
• Pushing Capacity: Stop only
• Drive Type: 32 mm steel reinforced belt
• Working Length:8, 12 & 16 Feet (2.4, 3.6 & 9.1 Meters). Custom lengths are available
• 1 Year Warranty
