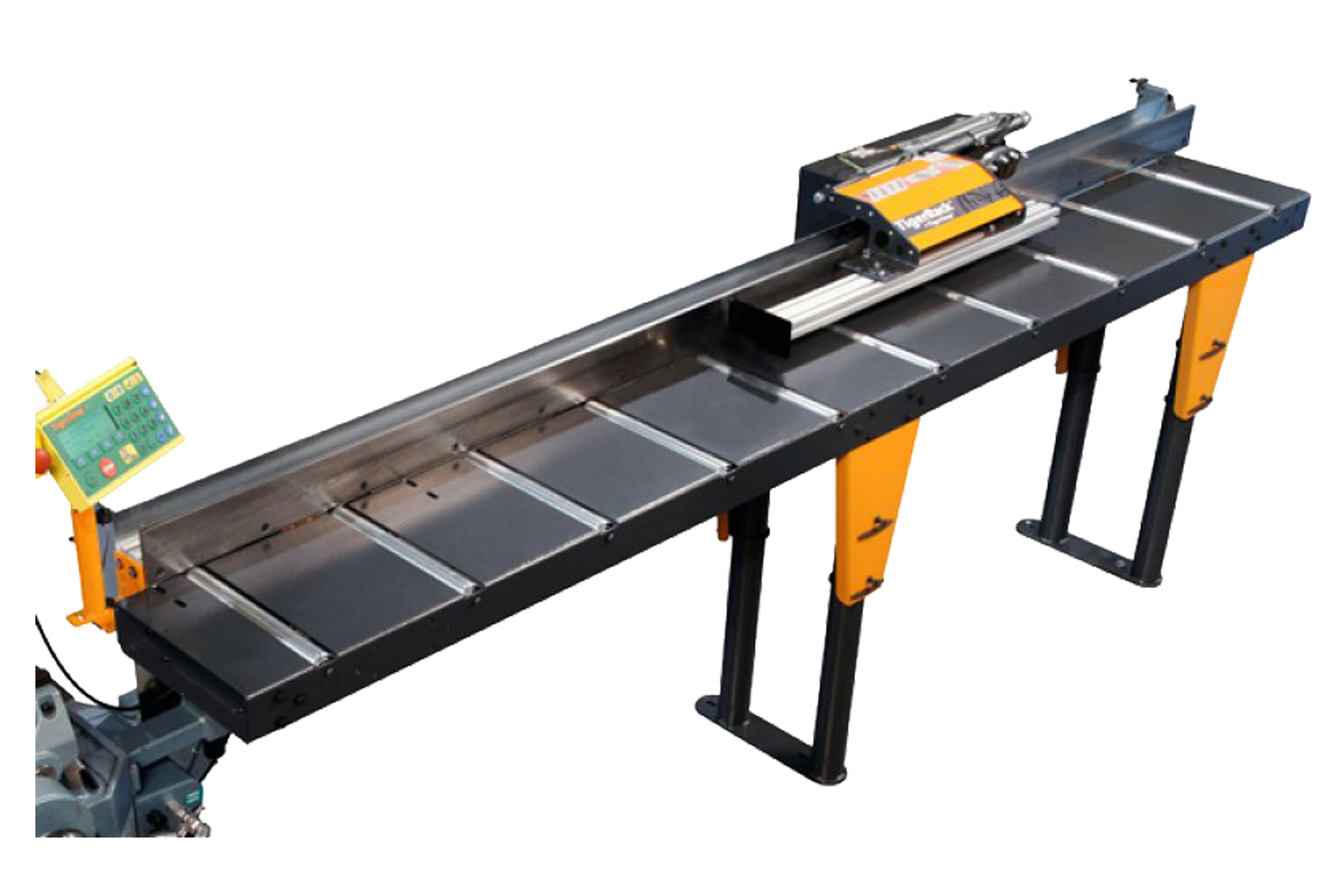

TigerRack™ offers precision, accuracy and speed for your industrial applications. TigerRack’s precision rack and pinion drive system will keep your production humming. Designed for processing tube, bar stock and heavier materials. Have a rough application? TigerRack’s brake system helps guarantee that you don’t end up miscutting parts.

Technical Data

• Power Requirement:
  208 VAC @ 20 Amps, Isolated Circuit
  240 VAC @ 20 Amps, Isolated Circuit
• Repeatable Accuracy: .008 in (.20 mm)
• Motor Type: DC servo w/ optical encoder
• Pushing Capacity: 720 lbs (326 kg) w/ rollers; 300 lbs (136 kg) w/o rollers
• Drive Type: Rack & Pinion
• Working Length: 8- 108 Feet (2.4 – 32.9 Meters).
• 1 Year Warranty
