UCCM550 / UCCM700 SEMI-AUTOMATIC COMPOUND UPCUT SAW

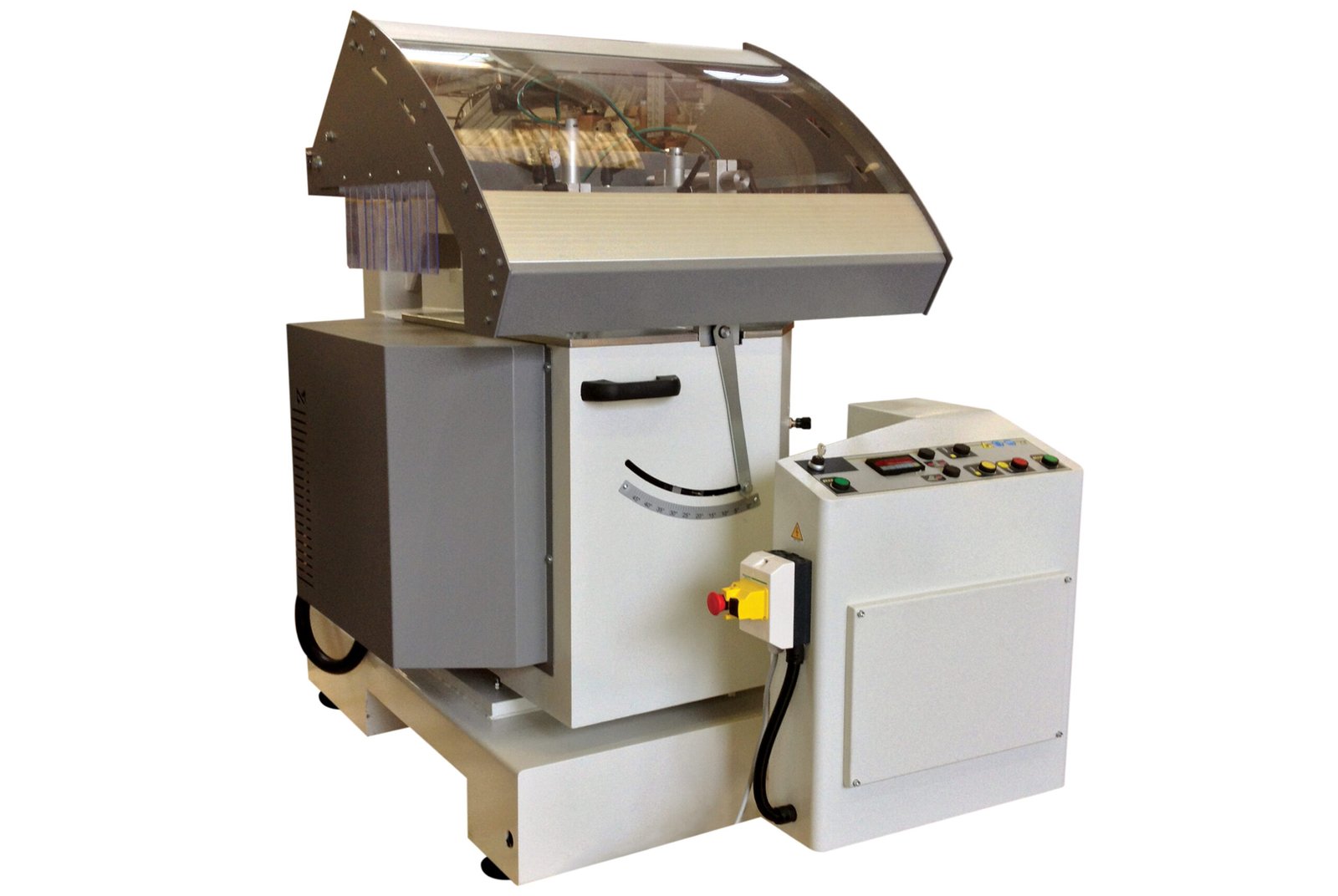

The UCCM550 / UCCM700 is a precision, single head, compound miter up cut saw for straight or compound miter cuts. Equipped with a Ø550 mm (Ø700 mm) blade capable of cutting large aluminum, PCV and non-ferrous metals. The hydro pneumatic blade feeding ensures an accurate and clean cut. The pneumatic controlled head tilting from 90° to 45° or intermediate angles set by manual stop is standard. The head can be rotated from 22.5° outwards to 22.5° inwards with pneumatic brake for the intermediate angles. Angles for rotation are displayed on a digital display for easy operator use and to ensure correct angular position. Electronic tilting and rotation option is available.

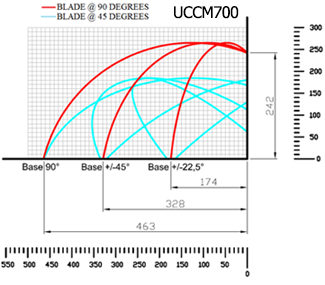

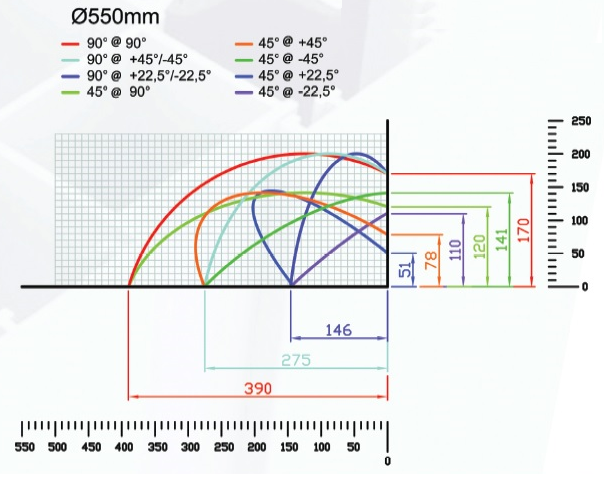

UCCM550 / UCCM700 TECHNICAL DATA

• UCCM550: Saw Blade Ø550 mm
• UCCM700: Saw Blade Ø700 mm
• UCCM550: 4 Hsp (3 kW) 220V, 3 phase, 60Hz
• UCCM700: 6.7 Hsp (5 kW) 220V, 3 phase, 60Hz
• Blade speed 2800 rpm
• Head rotation from 90° to 22.5° inwards and from 90° to 22.5° outwards, digitally displayed intermediate angles with pneumatic brake
• Blade tilting from 90° to 45° inwards, intermediate angles possible
• Hydro pneumatic blade actuation (adjustable blade rising speed – quick return)
• Working Pressure: 100 psi (7 bar)

UCCM550 / UCCM700 COMPONENTS SUPPLIED

• No. 1 Carbide saw blade Ø550 mm / Ø700 mm
• Spray mist blade lubrication system
• Cutting area completely protected
• Pneumatic cover
• No. 2 Vertical clamps
• Chip pan
• Air gun

OPTIONS

• Emulsionated oil type ALCUT Plus 20L
• Horizontal pneumatic clamp
• Lubrication by micro drop with pure oil
• Rolling tables
• Extra Ø550mm / Ø700mm Carbide blade
